How Specialist Trailers Support Reliable Heavy Equipment Transport
Specialist trailers exist for equipment transport jobs that a standard flatbed simply can't handle well. In construction, agriculture, municipal maintenance, landscaping, and rental fleet work, machinery varies wildly in weight, track width, wheelbase, ground clearance, and how it needs to be loaded. Getting this right means combining structural strength, loading safety, stable towing, and enough configuration flexibility to actually match the equipment being hauled.
Heavy-Duty Frame Engineering
The frame carries everything else. A rigid steel chassis with reinforced cross members spreads out concentrated equipment weight instead of letting it pile up in one spot — which matters a lot when carrying compact excavators, skid steer loaders, rollers, trenchers, or other machines with narrow tracks and high point loads.
Structural details worth paying attention to:
- Main beam thickness and steel grade
- Cross member spacing
- Deck reinforcement at high-stress zones
- Ramp hinge strength
- Drawbar and coupler load capacity
- Weld consistency and fatigue resistance
Torsional resistance becomes critical for frequent job-site transfers. Uneven ground, ramps, curbs, and unpaved roads all put twisting force on the chassis. A frame reinforced properly holds its alignment, resists long-term deformation, and keeps road performance predictable.
Low Deck Design and Loading Stability

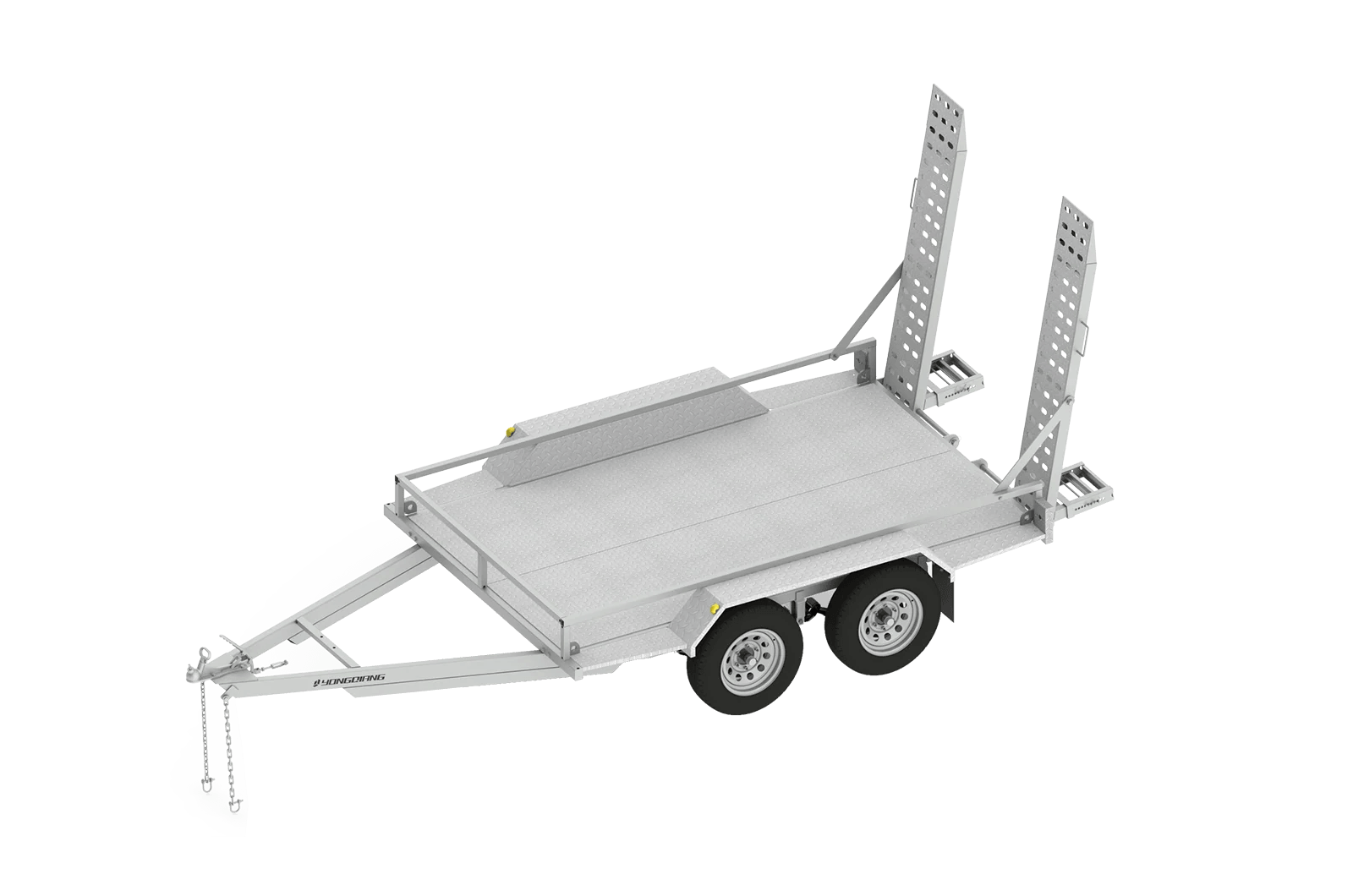

The low deck height is one of the bigger advantages a specialist trailer offers. A lower platform means a shallower loading angle, which keeps machines steadier while driving on or off — especially useful for tracked equipment, compact loaders, and machines that don't have much approach clearance to work with.
What a low deck structure actually delivers:
- Easier loading and unloading
- Lower risk of the machine tipping
- Lower center of gravity in transit
- Steadier towing overall
- Better operator control while on the ramps
Rear loading ramps need to be sized around the equipment's weight and how much contact area the tires or tracks actually have. Heavier-duty ramps often call for anti-slip surfaces, reinforced hinge points, spring-assist mechanisms, or adjustable spacing to fit different machinery.
Axle, Suspension, and Brake Selection
Axle setup shapes payload performance, ride quality, how much maintenance the trailer needs, and how it handles on the road. Multi-leaf spring axles and torsion axle systems are the two most common choices for specialist trailers.
| Configuration | Main Advantage | Typical Application |
|---|---|---|
| Multi-leaf spring axle | Strong load capacity, easy to maintain | Construction equipment transport |
| Torsion axle | Smoother ride, independent wheel movement | Sensitive machinery, long-distance hauls |
| Tandem axle setup | Better weight distribution and stability | Medium to heavy equipment |
| Electric braking system | Controlled stopping under load | Road transport, fleet operation |
Brake performance matters most when a trailer runs close to its rated capacity. Industrial-grade electric brakes, properly matched wiring, brake controllers, and breakaway systems all contribute to stopping safely under a full load.
Deck Size and Load Rating Selection
Specialist trailer decks commonly start around 7 ft wide and 14 ft or longer, but the right spec really comes down to the equipment's dimensions, operating weight, attachment length, and how the load balances out.
Factors worth working through before deciding:
- Equipment operating weight
- Machine width and track width
- Overall length including attachments
- Where the center of gravity sits
- Tie-down points needed
- Ramp width and load rating
- GVWR and axle rating
- Tire and wheel specification
Machine weight alone doesn't tell the whole story — attachments, fuel, accessories, spare tools, and how the load sits all factor in too. Getting the weight balance right keeps the tongue from being overloaded, helps braking perform properly, and protects the frame from stress it wasn't built to absorb.
Customization for Specific Applications
Specialist trailers often get chosen precisely because a standard design doesn't cover the actual working requirement. Adjusting the build at the factory level tends to improve practical use, safety, and how long the trailer lasts.
Common customization options:
- Adjustable rear loading ramps
- Full-width ramp gate
- Beavertail deck structure
- Reinforced steel deck or checker plate deck
- Treated wood deck option
- Extra tie-down rings
- Toolbox installation
- Spare tire mount
- Hydraulic tilt deck system
- LED lighting system
- Custom paint color and branding
- Different coupler types
- Electric or hydraulic braking options
For rental fleets and construction companies, this kind of customization cuts down on downtime and makes the trailer compatible with more machinery models. Municipal and utility work sometimes needs its own deck layout entirely, built around compact machines or road maintenance tools.
Why Factory Engineering Matters
Specialist trailers work in demanding conditions — construction sites, equipment yards, highways, rural roads, uneven access points. When a trailer is hauling compact excavators, skid steer loaders, rollers, or similar machinery, every structural detail feeds into safety, durability, and how efficiently the operation runs. A frame that's slightly under-built, a ramp that's poorly designed, an axle positioned wrong, or brakes that underperform — any of these can quietly drive up maintenance costs, make towing less stable, and shorten the trailer's working life.
Good factory engineering means designing around real working conditions, not just a basic load number on a spec sheet. Frame structure, deck layout, ramp angle, axle configuration, suspension choice, tie-down placement, braking system, and surface treatment all need to function as one connected system — particularly for equipment with concentrated weight, narrow tracks, or a center of gravity that shifts during loading and unloading.
As a heavy-duty trailer manufacturer, YQ Factory puts the focus on structural reliability, practical configuration, and consistent production control across its specialist trailer line. From material selection and weld quality through load testing, DOT compliance, WMI/VIN management, and final inspection, each stage is managed with long-term performance in mind for commercial and industrial use.
For machinery transport, a specialist trailer is more than just a flat surface to drive equipment onto. It's a working asset that keeps machinery mobile, supports efficiency on the job site, and helps fleets keep their transport capability dependable through repeated daily use.
